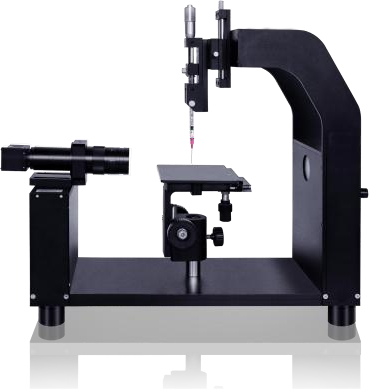

Yanzhi Contact Angle Tester Model: CHT-JCJ 03

Apply

Shanghai strict contact Angle tester adopts the principle of optical imaging to measure the performance of sample surface contact Angle, wetting performance, surface interface tension, surface energy, rolling (sliding Angle), forward and backward Angle through image contour analysis. Is mainly used to evaluate the effect of surface treatment, adhesion and coating in the process of adhesion and stability research, can be applied to perovskite solar cell perovskite layer, hole transport layer of thin film surface contact Angle, can also for semiconductor chip quality control surface cleanliness test, the plastic, glass, ceramics, paper and other materials wettability test.

Online Contact
  • Technical Parameters
Equipment host

outline dimension

550mm (long) 196mm (W) 485mm (height)

Host weight

11KG

Machine adjustment

Complete machine level test / adjustment

Source

voltage

100～240VAC

Power

20W

Frequency

50/60HZ

Space

Platform size

130mm 150mm (larger size optional)

Maximum sample

25,060mm (larger size optional)

Sample table adjustment

3 D manual adjustment (upgradable automatic)

Before and after adjusting manual, stroke 60mm, precision about 0.1mm adjusted manual, stroke 35mm, precision 0.1mm up and down adjusted manual, stroke 80mm, precision 0.1mm

Picture pick-up system

Maximum image

4000（H） × 3000（V）

Maximum frame rate

120 fps (upgradable higher frames)

Sensor

SONY 1/1.8"

Light spectrum

Black and white / color

Microscope head

Focal distance

100mm

Multiplying power

Eight times

Resolution scaling

6～12um

Illuminant

Type

Single-wavelength industrial LED (cold light)

Wavelength

470nm

Light field

Φ50mm

Light-spot

The 96-grain density formula

Life span

50000Hour

Injection system

Dropping method

Stratal precision microsyringe

Control method

Manual and control

Dropping precision

0.1 μl

Injector

High-precision air-tightness syringe

Capacity

1000 μl

Pinhead

0.51mm all stainless steel superhydrophobic needle (standard standard)

Software

Contact angle range

0～180°

resolution ratio

0.01°

Contact angle measurement method

Fully automatic, semi-automatic and manual

Analysis mode

Suspension drop method, stop drop method (2 / 3 state), bubble capture method, seat drop method, pin needle method, insert plate method

Analytic procedure

Static analysis, dynamic analysis of automatic fluid expansion, wetting dynamic analysis, real-time analysis, bilateral analysis, forward and backward Angle analysis

Test method

Circle method, ellipse / oblique ellipse method, differential circle / differential ellipse method, Young-lapalace, width and height method, tangent method, interval method

Surface free energy

Test method

Zisman, OWRK, WU, WU 2, Fowkes, Antonow, Berthelot, EOS, adhesion work, immersion work, and spreading coefficient

Data handling

Output method

Automatic generation, able to export / print EXCEL, Word, spectrogram and other report formats

Solutions

 IEC61215

IEC61730

BIPV
