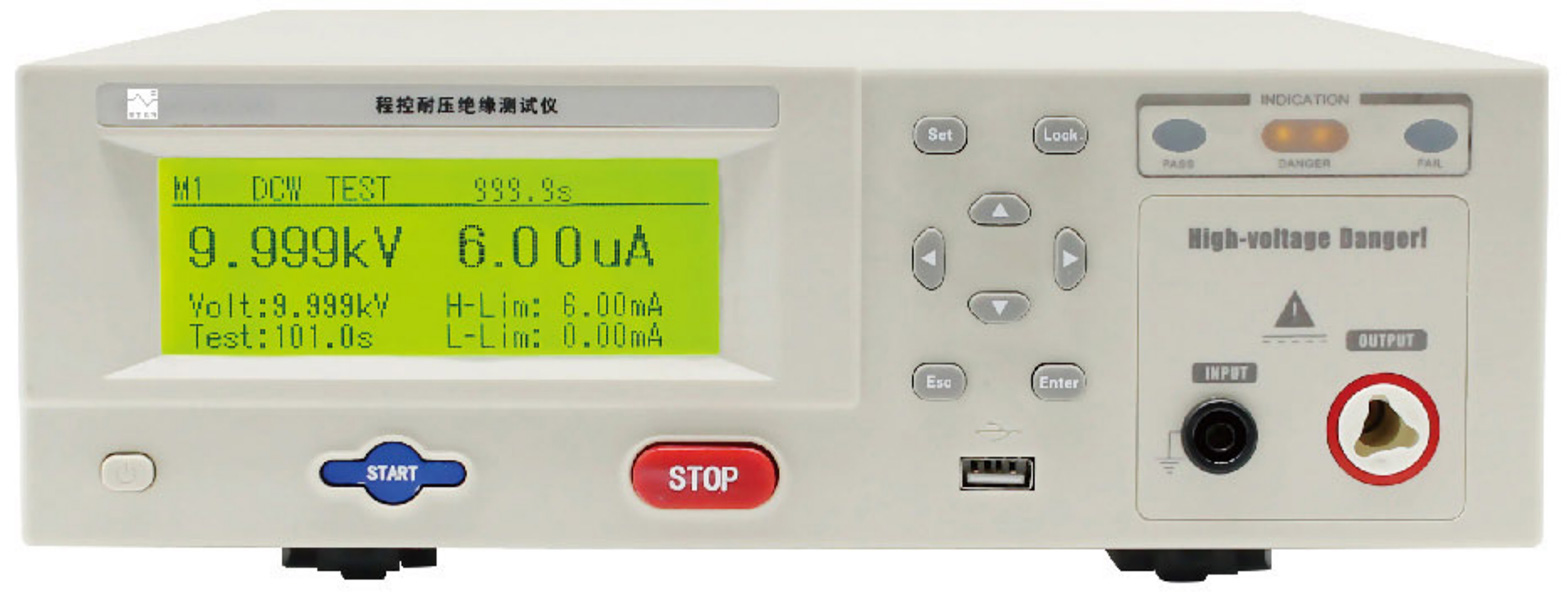

Yanzhi Insulation withstand voltage tester Model: CHT-2813W

Apply

Meet the requirements of IEC 61215:2016 & 2021 MQT 15, IEC 61730-2:2021,2021, UL 1703 insulation test; meet the requirements of VDE 0126-5, VDE 0126-3 junction box and connector.

Online Contact
  • Technical Parameters
Pressure Resistance Test
Output Voltage0-12KV (VDC)
Voltage Accuracy±1.5% set value ±5V
Voltage Resolution1V
Current Range0-10.00mA
Output Current5mA
Current Accuracy±1.5% reading ±5μA
Current Resolution0.001mA
Ramp-up Time0.0S to 999.9S
Test Time Range0-999s
Test Time Resolution0.1s
Test Time Accuracy±0.1% set value ±1s
Upper Limit Setting0-9.99mA
Lower Limit Setting0-9.99mA
Insulation Test
Output Voltage Setting Range (DC)0-2000VDC
Output Voltage Resolution1V
Output Voltage Accuracy±1.5% set value
Insulation Resistance Setting Range0-3000MΩ
Insulation Resistance Resolution0.01MΩ/0.1MΩ/1MΩ
Delay Time Setting Range0.5-999.9s
Test Time Setting Range0.0-999.9s (0.0=continuous output)
Test Time Resolution0.1s
Test Time Accuracy±(0.1% set value +0.05s)
Ground Resistance Test
Output Current Setting Range (DC)0-100.00A
Output Current Resolution0.01A
Output Current Accuracy±1.5% set value
Ground Resistance Setting Range0.0mΩ-100.0mΩ (upper limit >100mΩ)
Ground Resistance Measurement Range0-100mΩ (upper limit >100mΩ)
Ground Resistance Resolution0.1mΩ or 1mΩ
Ground Resistance Accuracy±(1.5% reading +3mΩ)
Test Time Setting Range0-999.9s (complies with 120s test time)
Test Time Resolution0.1s
