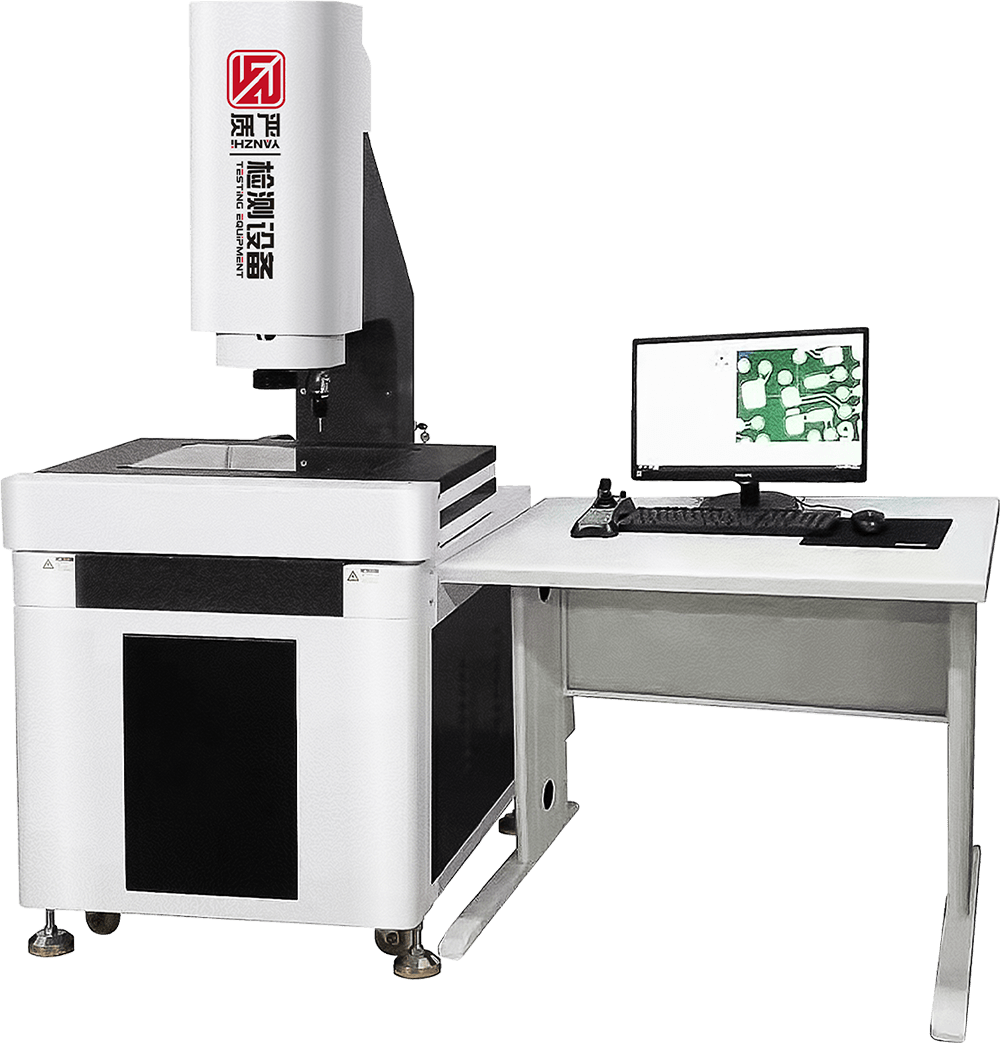

Yanzhi Two-dimensional image instrument

Apply

1. Used to detect the graphics, 2D plane, gate line width, spacing, PT value printing effect of photovoltaic grid panels, etc.

2. Measure the size of the battery fine grid, such as width, spacing, etc.

3. Check the size and shape of the welding belt.

4. Measure the geometry of other components.

5. Automatic measurement of the metal cover rate.

6. Help the photovoltaic enterprise users to improve the screen printing process.

Online Contact
  • Product Features
  • Technical Parameters

One-key operation, autofocus, automatic capture, autofocus, one-key report generation

Pooling of precision machinery, measurement and control system, software algorithm, optical design, probe system, multi-field cutting-edge technology;

Optical measurement and probe measurement (optional) can be used in a set of programming;

To achieve batch integration of accurate measurement, consistent.

Hardware advantages

1) High precision marble base, column, upper, middle and lower three-layer workbench;

2) Precision P grade straight guide rail and grinding stage ball screw;

3) The stability of the superior materials ensures the reliable accuracy of the machine;

4) High-performance servo motor full closed-loop control of 400W motor;

4) Inststant full of power, a key that stop, that move;

5) High resolution 900 line color camera, to ensure a high quality measurement picture;

6) Autofocus, continuous zoom lens, automatic zoom lens (optional), change the multiplier does not need to repeat the scale;

7) RUS display 0.000001mm.

Instrument model

CHT-322-DYZS

CHT-432-DYZS

CHT-542-DYZS

Instrument parameter

measuring range (mm)

300

400

500

200

300

400

200

200

200

staging (mm)

Granite table

460*360

560*460

660*560

Glass countertop

339*239

439*339

539*439

bearing

20kg

20kg

20kg

Image and measuring system

Measurement speed

MAX:500mm/s

CCD

A 2-megapixel HD color camera

varifocus objective

PMS automatic zoom with coaxial optical lens 0.7-4.5X

Video magnification

30X－225X

operating distance

90-115mm

resolution ratio

Metal grating ruler 0.0001mm

Certainty of measurement (μm)

XY axis (1.9 + L / 300) um, Z axis (2.8 + L / 200) um

Outline dimension (mm)

660*780*1080

760*880*1080

860*980*1230

Instrument table overall dimensions (WxLxHmm)

900*1300*1680

900*1300*1680

1000*1350*1830

Instruments weight (kg)

250KG

280kg

380KG

Lighting

LED surface light and straight axis contour light

Source

220V ± 10% (AC) The 50 HZ current is greater than 10A
