Location：Home > Photovoltaic Test Products > Subassemblies > Optical aging stability test box Model: CHT-1800

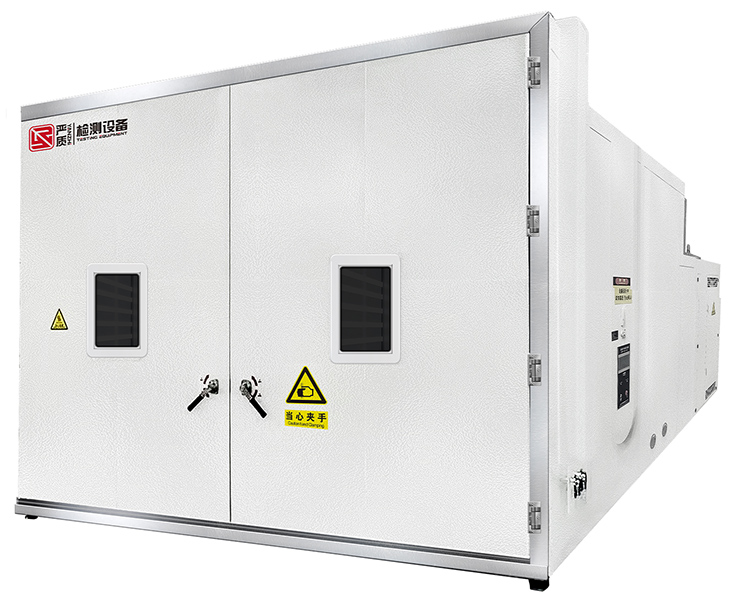

Yanzhi Optical aging stability test box Model: CHT-1800

Apply

satisfied:

IEC61215-MQT 09, MQT 19, a spot area of 5200 * 4400mm (suitable for 62500mm * 1400mm components), and the spectrum meets the BBA standard.

Online Contact
  • Product Features
  • Technical Parameters

1) Aluminum profile + color steel plate structure;

2) Spectral mismatch degree, irradiation inhomogeneity, and irradiation instability should at least reach the BBA level standard (refer to GB _ T 6495[1]. 9 Standard);

3) The irradiance range reaches 700 ~ 1300 W/m2;

4) The radiation area reaches 5200 * 4400mm;

5) Local temperature control of the components, the temperature control range is 50-80℃, meet the IEC63126 high temperature standard;

6) Each lamp is equipped with an independent control system, which can adjust the irradiation intensity or the overall irradiation intensity of each light source;

7) manually set the lamp power or automatically adjust according to the set irradiation intensity;

8) Industrial control machine control, windows10 operating system, is conducive to the control and data storage;

9) Equipped with electronic load, with IV curve test function, can be hot spot selection and hot spot test;

10) Equipped with an inverter to track the maximum power point of the component, the power of the inverter can be returned to the system to save energy;

11) The temperature, operation duration and accumulated radiation intensity parameters can be set; during operation duration / accumulated radiation amount, the equipment will automatically stop automatically;

12) The product is equipped with 6 cart type sample rack, the vehicle can meet the placement of 2500 * 1400mm components, the product can meet the layout of the car 3 * 2, placing 6 components. The trolley size should be greater than the component size. In case the adjacent components collide with each other.

Model numberCHT-1800
Irradiation meter
Spectral range285~2800nm
Irradiance range0 ~ 2000 W/m2
Response time<6s
Annual stability1%
Horizontal bubble accuracy<0.2°
Temperature response5%
Temperature
Sensor typeT-type thermocouple
Test range0~200℃
Test accuracy± 1℃
Resolution0.1℃
Component temperature test accuracy± 0.5℃
The IV electronic load
Current0-30A
Resolution1 mA
Accuracy0.05% + 0.05%FS
Voltage0-500V
Resolution10 mV
Accuracy0.05% + 0.25%FS
Power750W
Resolution10 mW
Accuracy rate0.2% + 0.2%FS
