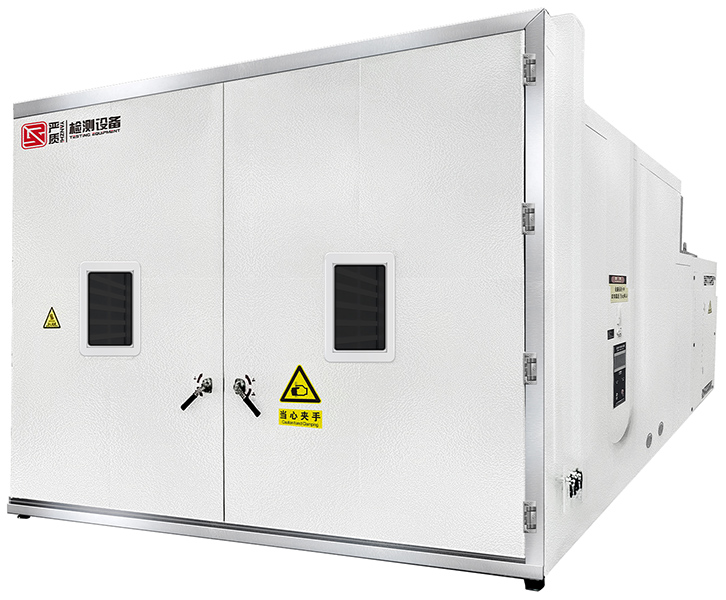

Yanzhi PV Module Damp Heat, Freeze-Thaw Test Chamber Model: CHT-19-12-3

Apply

Compliance with:
- IEC61215: MQT10, MQT11, MQT12.
- IEC61730: MST37, MST51, MST52, MST53, MST55, MST56.
- UL1703: Clauses 34, 35, 36.

This equipment is an essential testing device for the photovoltaic and solar energy industries. It is designed to evaluate the performance and parameters of photovoltaic components (including monocrystalline silicon modules, terrestrial crystalline silicon PV modules, and terrestrial thin-film PV modules) under extreme environmental conditions such as high/low temperature, humidity cycling, constant damp heat, or temperature variations. Suitable for research institutions, factories, military facilities, and academic laboratories.

Online Contact
  • Product Features
  • Technical Parameters

1) Proven Technology: Extends the CHT series standard product line, with mature applications in electronics, automotive, R&D, military, and solar industries;

2) Customized Design: Technical solutions are tailored based on client specifications and site conditions;

3) Reliability & Efficiency: Advanced design ensures stable performance, user-friendly operation, easy maintenance, and cost-effective implementation.

4) Safety & Durability: Prioritizes usability, reliability, safety, and cutting-edge technology to reduce energy consumption and enhance quality;

5) Component Selection: Combines domestic and international components. Critical parts and electrical elements use imported or joint-venture products to ensure longevity and stability;

6) Electrical Control: Complies with national electrical standards, featuring robust safety protection and interlocking functions.

Model

CHT-19-12-3
Dimensions

Nominal Capacity (m³)

21m³ (customizable within range)

Inner Chamber (mm)

W2400 × D3000 × H2800 (customizable within range)

Outer Dimensions (mm)

W3200 × D4500 × H3300 (customizable within range)

Temperature Parameters

Temperature Range

-50℃ to +150℃ (customizable within range)

Temperature Fluctuation

≤ ±0.5℃

Temperature Uniformity

≤ 2.0℃

Temperature Deviation

≤ ±2℃

Component Temp. Control Deviation

≤ ±2℃

Temperature Control Accuracy

±0.1℃

Temperature Ramp Rate

200℃/h (-40℃→+85℃, linear, full load with samples & fixtures)200℃/h (+85℃→-40℃, linear,full load with samples & fixtures)

Humidity Parameters

Humidity Range

10%RH ~ 98%RH

Humidity Accuracy

±1%RH

Humidity Fluctuation

+2% to -3% RH (>95%RH); ±5% RH (≤95%RH)

Humidity Deviation

≤ ±3%RH
