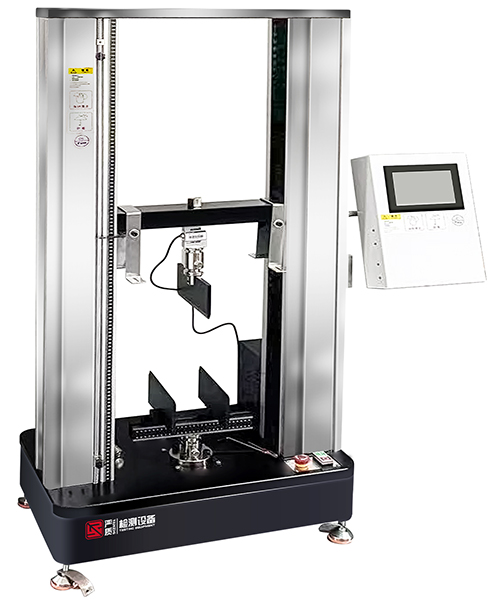

Yanzhi Universal material testing machine

Apply

1. Mechanical performance test of photovoltaic module frame and bracket: including tensile strength, yield strength, bending strength, etc., to ensure its structural stability and bearing capacity under different environmental conditions.

2. Performance evaluation of photovoltaic backplane material: tensile performance, tear strength, puncture strength, etc. to ensure the reliability and durability of backplane in outdoor environment.

3. Mechanical properties test of packaging materials: for example, measure the tensile and stripping strength of EVA (ethylene-vinyl acetate copolymer) film, and judge the packaging effect and quality.

4. Mechanical performance testing of photovoltaic cables: such as tensile strength, flexibility, etc., to ensure that the cable is not easy to damage during the installation and use.

5. Photovoltaic materials: including circular welding strip, junction bar yield strength / junction box / packing belt strength, etc.

6. Three-or four-point bending strength test of photovoltaic cells.

7. Research and development of new photovoltaic materials: In the research and development stage, the various mechanical properties of new materials are comprehensively tested to provide data support for the improvement and optimization of materials.

Online Contact
  • Product Features
  • Technical Parameters

1) Exquisite and elegant appearance design, our company has been paying great attention to the appearance of products for many years, and has developed many products that can be comparable to foreign models. Part of the test machine has obtained the national appearance patent protection；

2) Key parts, the use of international famous brands, such as motor, frequency converter, wire rod, strength sensor, etc；

3) The circular tooth synchronous belt deceleration system has the advantages of high efficiency, long life, low noise and maintenance free；

4) Using high precision wire loading, stable loading, long life of the test machine, long-term stability and energy saving；

5) A variety of protection measures, such as all kinds of electrical protection in the power link, the software part of the overload, overshift protection, mechanical forced safety limit protection, etc；

6) Simple, reliable, and powerful user operation interface；

7) Open data structures, both outcome parameters and process data allow users to call randomly, are very beneficial for testing and scientific research；

8) Users can edit the report function, the data can be easily imported into the EXCEL table, convenient for users to post-processing；

9) Using 232 interface and computer connection, the sampling frequency is higher, no interference, the test data is more stable；

10) The test software is independently developed with strict quality, and can be customized according to customer requirements.

Technical parameters of the biaxial test machine

Model

CHT-6001

CHT-6002

CHT-6003

CHT-6004

CHT-6005

Capacity selection

5--200kg

5--500kg

10--500kg

10--2000kg

500--5000kg

Board

monopodium

biax

biax

biax

biax

Load weight decomposition degree

1/1000000

1/500000

Heavy load accuracy

±0.5%

Power magnification

x1,x2,x10,x20,x50,x100

Maximum stroke

600mm

800mm

Effective width

180mm

450mm

Test speed

50--500mm/min,0.1---500mm/min

Speed accuracy

≤±0.3%

Displacement decomposition degree

0.001mm

Motor

AC frequency / Panasonic servo

Actuator

Frequency conversion / servo

Reduction box

The ottles reducer

Volume

500×420×1250mm

500x420x1750mm

500x800x1700mm

500x800x1850mm

980x660x2100mm

Weight

50kg

75kg

240kg

260kg

300kg

Source

220V  50HZ  0.4KW

220V  50HZ  0.75KW

220V  50HZ  2.0KW
