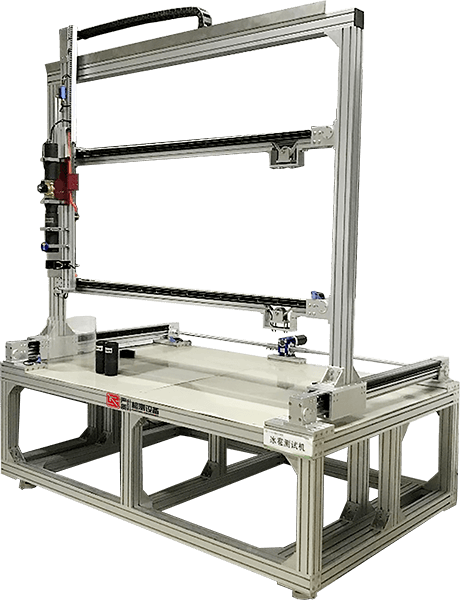

Yanzhi Hail tester Model: CHT-28D

Apply

The hail test machine meets the test requirements of clause 4.17 (MQT 17) in IEC61215-2:2016 test standard to verify the ability of the components to resist hail impact. The artificial ice hockey machine is used to simulate hail and impact the components with constant speed to simulate the impact of hail climate on the components.

Online Contact
  • Technical Parameters
The movement distance of the X-axisabout 2,600 mm
The movement distance of the Y-axisabout 1,500 mm
Impact area 2600x1500mm (customizable)
The drive modeimported servo motor + synchronous wheel
The power source compressed air of the air compressor
Air pressure6～8bar
The ckmanual mount
The barrel lengthabout 940mm
Ice hockey is emitted vertically, and the laser is fixed point
Infrared range, ice hockey transmitter and test sample distance <1 m
The speed of the ice hockey flight is calculated according to V=S / t by measuring the infrared velocity sensor and grasping the time t when the infrared ray is blocked
The speed measuringhigh precision infrared speed measuring sensor
The accuracy of the infrared speed measuring sensor±2％
The speed grasping range0～40 m/s
