Location：Home > Photovoltaic Test Products > Batteries > High pressure Accelerated aging test box Model: CHT-HAST-800

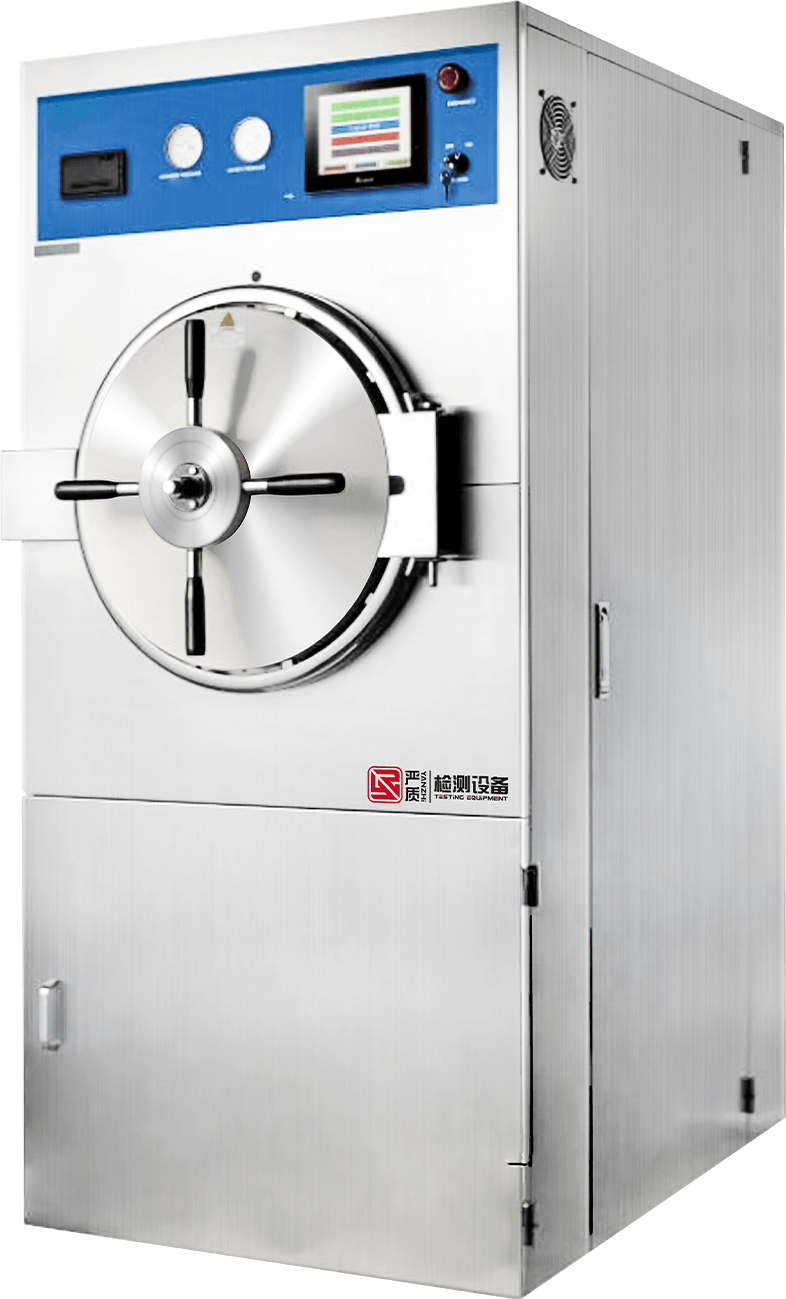

Yanzhi High pressure Accelerated aging test box Model: CHT-HAST-800

Photovoltaic applications

The strict CHT-HAST-800 high-pressure accelerated aging test box is a commonly used test equipment, mainly used to evaluate the reliability and durability of products in the photoelectric industry. The test box can simulate the extreme environmental conditions such as high pressure, high temperature and high humidity. Through the accelerated aging test, the possible problems and faults in the use process can be found in advance, so as to guide the design improvement and quality control of the product. In the photoelectric industry, the high-voltage accelerated aging test box is usually used to test the performance and reliability of solar panels, LED lamps, optical fiber transmission equipment and other photoelectric products. Through this test, it can ensure the stability and durability of photoelectric products in a variety of harsh environments, improve the quality and reliability of the products, and meet the market demand.

Online Contact
  • Product Features
  • Technical Parameters

1) The imported high temperature resistant solenoid valve double circuit structure is adopted to reduce the failure rate to the maximum extent;

2) Independent steam generation chamber, to avoid direct steam impact on the product, to avoid causing local damage to the product;

3) Door lock labor saving structure to solve the disadvantage of locking the disc handle of the first generation of products;

4) Cold air in front row; the design (exhaust air in the test bucket) improves pressure stability and reproducibility;

5) Ultra-long-term test operation time, long-time test machine running for 400 hours;

6) Water level protection, protection through the water level Sensor in the test room;

7) Tank pressure design, box pressure resistance (150℃)2.65kg, hydraulic test 6kg;

8) Two-stage pressure safety protection device, two-stage combined controller and mechanical pressure protection device;

9) Safety protection row pressure button, alarm and two automatic row pressure button of emergency safety device;

10) Biasing test terminals can withstand up to 3000V (optional);

11) USB Exporting historical data, curve.


历史记录数据

Test box sizeCHT-HAST-500 (500 mm x L800 mm) round test box
Full machine external dimension650x 920 x 1300 mm (W * D * H) vertical type
Inner bucket materialstainless steel plate material (SUS # 316 3 mm)
Outer bucket materialstainless steel plate material or choose spray plastic selection
Thermal insulation materialhigh temperature resistant rock wool and hard polyurethane foam insulation
Steam generator chamber heating tubetitanium tube heating, never rust

Control system

A) Use the stage color touch type PLC to control the humidity and steam temperature (using PT-100 platinum temperature sensing body)

B) Use a pointer to display the pressure gauge

C) Microcomputer P.I.D automatic calculus control of saturated steam temperature and steam humidity

D) Manual water entry valve (automatic water replenishment function, continuous non-stop test)

E) Record test data U disk export and curve query

Mechanical structure

A) Round inner box, stainless steel round test inner box structure, in line with the standard of industrial safety container, can prevent the dripping design in the test

B) Round lining, stainless steel round lining design, can avoid steam latent heat direct impact on the test article

C) Precision design, good air tightness, less water consumption, each water can be continuous 1000 Hrs operation

D) The patented packing design makes the door and the box more closely combined, which is completely different from the traditional extrusion type and can extend the life of packing

E) Critical point LIMIT mode automatic safety protection, abnormal cause and fault indicator light display

Safety protection

A) Imported high temperature resistant sealing solenoid valve adopts double circuit structure to ensure no pressure leakage

B) The whole machine is equipped with overpressure protection, overtemperature protection, one-button pressure relief, manual pressure relief multiple safety guarantee device, to ensure the use and safety of users to the maximum extent

C) Backpress door lock device, when there is pressure inside the laboratory, the test box door cannot be opened
