Location：Home > Photovoltaic Test Products > Subassemblies > UV accelerated aging test box Model: CHT-UVDC28

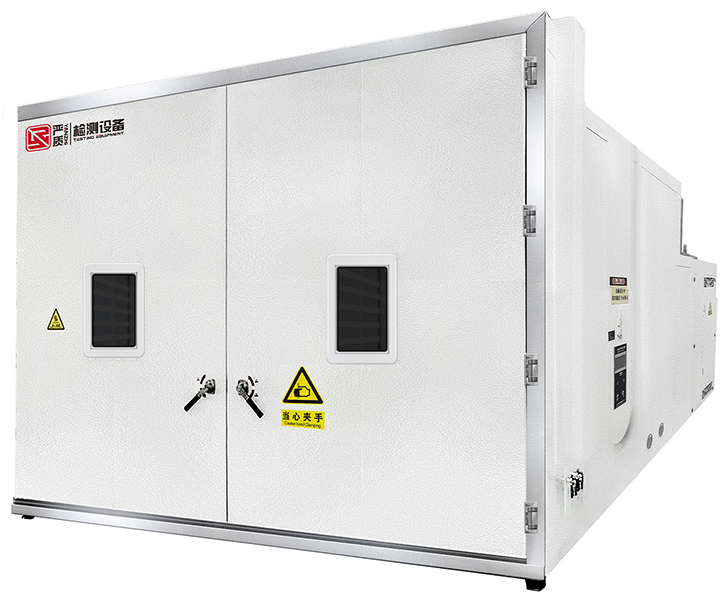

Yanzhi UV accelerated aging test box Model: CHT-UVDC28

Apply

satisfying criteria:

IEC61215-MQT10、IEC61730-MST54

Meet the UV pretreatment test condition (MQT 10) in IEC 61215-2:2016, and meet 2 pieces of 2600 * 1500mm (can be made according to customer requirements to meet different numbers of samples test).

The UV test of the components.

Remote laboratory information management system can be realized.

Online Contact
  • Product Features
  • Technical Parameters

1) Environmental box temperature water cooling plate change control temperature, the inner wall of the box is installed with high reflectivity bean grain aluminum plate;

2) Insulation material polyurethane or glass fiber thermal insulation cotton;

3) The ultraviolet lamp with the structure of gold halogen lamp, high cost performance, low test cost, short cycle;

4) Each ultraviolet lamp has a set of power control system, the irradiance can be controlled separately;

5) During the test, the ultraviolet irradiance data can be tracked and recorded, and after the irradiation amount meets the requirements, the test can be automatically stopped;

6) The surface temperature of the component can be tracked and recorded to maintain the surface temperature of the component at 60 ± 5°C;

7) The surface temperature of the component is controlled from 40-70 ± 5°C;

8) Configure the micro inverter, so that the components work at the maximum power point;

9) The temperature, operation duration and accumulated radiation intensity parameters can be set; when arriving at the operation duration / accumulated radiation amount, the equipment will automatically stop.

Volume, Dimensions, and weight

Nominal content product

10.2m³
Inner size3200mm 3000mm 2000mm (WDH)
External size3450mm 3400mm 2760mm (WDH) including light box height
Temperature performance

Ambient temperature

0-80℃
Sample temperature60±5℃
Temperature uniformity±5℃
Temperature resolution0.1℃
Temperature fluctuation degree≤±0.5℃
Ultraviolet light

Spectral range

280nm～400nm

Spectral characteristics

 the irradiation intensity of 280-320 nm (UVB) accounts for 3% -10% of the total irradiation intensity of 280-400 nm (UVA + UVB)

Irradiation intensity

UVA + UVB = 150 ~ 250 W / ㎡, UVC ratio: 0.3%

Irradiation area

3200 * 2600mm can meet the size of 2600mm 1500mm two components tested at the same time (can be made according to customer requirements, to meet different numbers of sample testing)

Non-uniformity

10%

Test equipment

UV probe

Irradiation accuracy

irradiation intensity is 0.1w / ㎡, and irradiation dose is 0.1 KWH / ㎡

Tube warranty

2000 H, the service life is not less than 3000H, the light intensity value of the service life is 150W / ㎡ ~250W / ㎡
