Location：Home > Photovoltaic Test Products > Subassemblies > Wet leakage test system Model: CHT-3621W

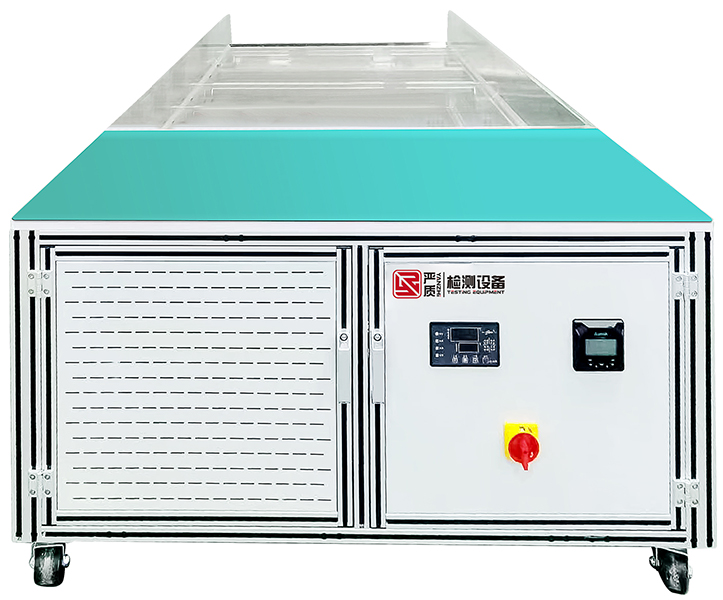

Yanzhi Wet leakage test system Model: CHT-3621W

Apply

Satisfied: IEC61215-MQT 15, IEC61730-MST 17, UL1703-27

The CHT-3621W series product evaluates the insulation performance of the assembly under wet working conditions, verifying that rain, fog, dew, or dissolved moisture does not enter the working part of the internal circuit of the component, which may cause corrosion, leakage, or safety accidents. Meet the wet insulation test requirements specified in IEC61215-MQT 15, IEC61730-MST 17.

Online Contact
  • Product Features
  • Technical Parameters

1) The liquid temperature can be automatically controlled, and the temperature control system uses the temperature and cooling machine to accurately control the water temperature;

2) Can monitor the electrical conductivity and the temperature of the liquid;

3) Equipped with insulation tester, can conduct insulation and leakage electricity test of components;

4) The insulation tank adopts PP material;

5) The base is mounted with a universal brake castor wheel;

6) The bottom is equipped with a drainage valve for easy cleaning;

7) It has overload, overcurrent and overpressure alarm.

Model

CHT-3621W

Sink material

PMMA

The wall of the sink is thick

20mm

The tank volume

custom made

Pressure-resistant voltage range

0.1-12KV

Insulation voltage range

500-2500V

Voltage accuracy

3%

Voltage resolution

0.1V

Insulation resistance

100KΩ-99GΩ

Resistor accuracy

±(2%+3dig)@(100kΩ-999MΩ)/

±(5%+3dig)@(1.00GΩ-9.99GΩ)/

±(20%+3dig)@(10GΩ-99GΩ)

Temperature control range

5-35℃

Heating power

6KW

Refrigerating capacity

3HP

Temperature control accuracy

±1℃

Range of conductivity

1.0~2000 μ S / cm (equivalent to 500 Ω · cm ~ 1000,000 Ω · cm)

Basic error of the electrical conductivity

±1.0%FS

Conductivity tests repeduciability

±0.2%FS

Temperature range

0-50℃

Temperature resolution

0.1℃

Temperature accuracy

±1℃
