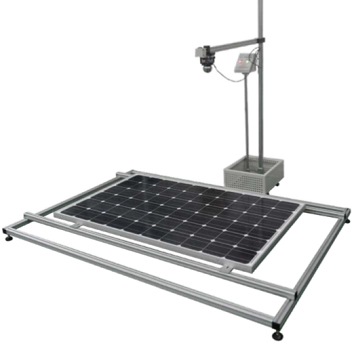

Yanzhi Drop ball impact test machine Model: CHT-10

Apply

Falling ball impact test machine is a kind of used to test the firmness of plastic, ceramics, acrylic, glass weaving dimension and other materials and coatings. This equipment meets the JIS-K6745, A5430 test standard. This machine to adjust the weight of the steel ball at a certain height, make the steel ball free fall, hit the components or junction box, depending on the degree of damage, to judge the quality of the components, junction box, suitable for UL1703 components and junction box impact test, this equipment is well received by the manufacturers, is an ideal test equipment.

Online Contact
  • Technical Parameters
Drop height0-2000mm adjustable
Drop ball control modeDC magnetic control
Used power supply220V, 50 HZ, and 3A
Machine sizeabout 500 * 500 * 2200mm
Machine weightabout 50kg
Weight of steel ball55 64 110 255 535G
Steel ball diameter51mm
Falling ball positioning methodlaser infrared positioning
Drop ball positioncover the whole assembly
Attachmentcomponent mounting frame, with any size component in 2.5m*1.4m
Execution standardUL1703-2015 assembly and junction box impact test
