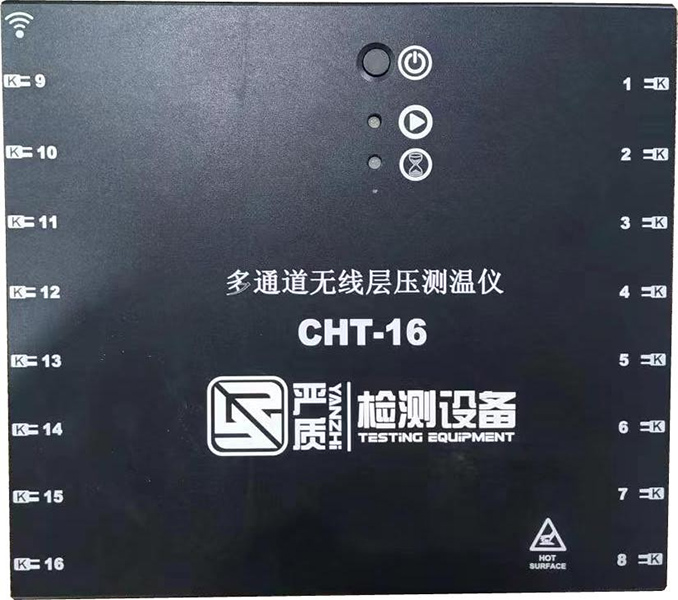

Yanzhi Photovoltaic laminated multi-circuit temperature：CHT-16

Apply

This furnace temperature tracker is a high precision, high stability of the furnace temperature test and recording product, the system is also equipped with a powerful software analysis system. The recorded temperature value can be saved for data, and through the computer analysis system to carry out various functions, including temperature, length, time, product process and other parameters for synchronous analysis and processing. The resulting temperature curve report immediately provides the engineers with the true temperature condition of the product and the furnace, and simply tells you exactly how to optimize the operation. By balancing the temperature, time and heating rate, you can improve the line speed and product quality, achieve efficient production, and improve the yield.

Online Contact
  • Product Features
  • Technical Parameters

1）Can be continuous data, one download；

2）Before each test, it can be set on the instrument without connecting to the computer；

3）Standard voltage calibration, reliable accuracy.；

4）Using the current Texas Instruments acquisition chip, we will not miss any subtle temperature changes；

5）Small size, large storage capacity (460,000 data points), and no unexpected data loss；

6）Display the value of each channel in real time, and display the channel average at the same time；

7）Historical data, excel, graph line two forms, can be U disk copy；

8）Optional number of use channels；

9）There are four basic pictures: digital picture, stick picture, (history) curve screen and alarm display screen；

10）Real-time curve recording interval 1 second ~9999 seconds history curve viewing interval from 1 second to 9999 seconds can be set continuously；

11）The main engine can be used in the lamination machine, and the heat insulation box will not be compressed, deformed and damaged；

12）Multiple continuous tests with up to 100 sets of data storage; the device has power off memory function, and the accidental power off collector data is not lost；

13）The battery supports charging and replacement；

14）Press to start, delay to start, temperature to start, the three start methods are more convenient and practical；

15）Support wireless data transmission and implementation of data reading, real-time online data viewing, software support editing and modification.


未标题-2

Name

Photovoltaic laminated multiple-channel temperature recorder

Model

CHT-16

Heat insulation layer thickness

Thickness of 20mm

Instrument size

140*80*9.5

Number of test channels

12-16 and above channel data recorder

Sensor type

Type K thermocouple

Test accuracy

±0.3℃

Data transmission

USB transmission link data / wireless real-time transmission

Wireless transmission signal loss rate

≤0.2%

Wireless transmission frequency

0.05-200.00 (sec)

Resolution ratio

The minimum resolution was 0.1℃

Continuous test

It can be tested multiple times. Store maximum 1 of 100 sets of data

Battery supply

Lithium battery / nickel metal hydride battery, endurance of 6H

Instrument temperature resistance

90.00℃

Measuring range

-200℃-1370℃

Internal storage

128M, 8.3 million data

Transmission mode

USB / wireless transmission

Sampling period

0.05s,0.1s,0.2s, 1s, 2s, 3s, 4s, 5s, 6s, 10s, 200s, etc., can be chosen by the user.

Cell

The instrument uses a built-in rechargeable lithium battery.

Starting mode

Press the key to start, delay to start, and allow the temperature to start

Calibration method

Voltage calibration, temperature calibration
