Location：Home > Photovoltaic Test Products > Subassemblies > 2nd element image instrument model: CHT-3020

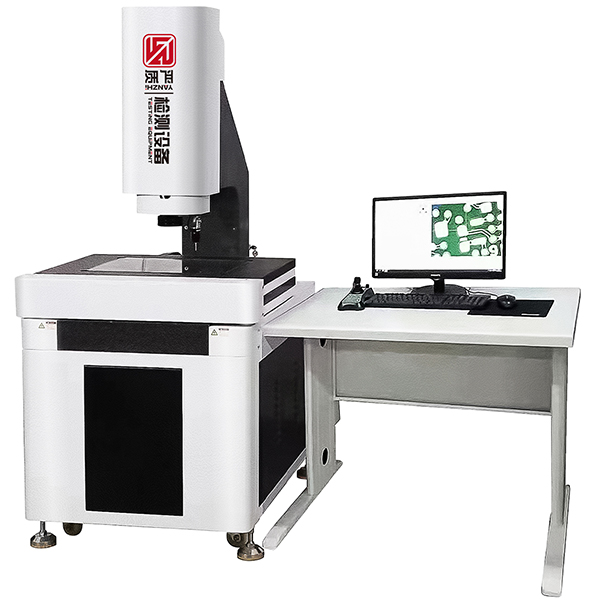

Yanzhi 2nd element image instrument model: CHT-3020

Apply

1. Measure the size of the battery fine grid, such as width, spacing, etc；

2. Check the welding strip size and shape；

3. Measure the geometric dimensions of the other components；

4. The metal covering rate is measured automatically.

Online Contact
  • Product Features
  • Technical Parameters

1）Excellent software architecture design, software algorithm industry first-class, stable and reliable, support for various languages, exported to overseas, rest assured to use；

2）Precision compensation: surface complement three horizontal and three vertical, ensure accuracy to every position, Z axis perpendicular compensation function, so that XYZ three axis win；

3）Super edge search algorithm to ensure the accuracy of edge search. There is no software enemy in the industry；

4）The manual machine is equipped with programmable software to realize the automatic measurement of the image area, the arrow indicates the next measurement direction, the hands only need to move the machine；

5）No secondary software secondary editing is required. Reduce manual fatigue, free hands, let you experience flying general measurement；

6）Powerful measurement results show that the tolerance setting, professional, independent SPC statistical analysis software, strong dominant position.

Instrument model

instrument parameter

CHT-322-DYZS

CHT-432-DYZS

CHT-542-DYZS




Measuring range (mm)

300

400

500

200

300

400

200

200

200

Staging (mm)

Granite table

460*360

560*460

660*560

Glass countertop

339*239

439*339

539*439

Bearing

20kg

20kg

20kg

Image and measuring system

Measurement speed

MAX:500mm/s

CCD

A 2-megapixel HD color camera

varifocus objective

PMS automatic zoom with coaxial optical lens 0.7-4.5X

Video magnification

30X－225X

Operating distance

90-115mm

Resolution ratio

Metal grating ruler 0.0001mm

Certainty of measurement (μm)

XY axis (1.9 + L / 300) um, Z axis (2.8 + L / 200) um

Outline dimension (mm)

660*780*1080

760*880*1080

860*980*1230

Instrument table overall dimensions (WxLxHmm)

900*1300*1680

900*1300*1680

1000*1350*1830

Instruments weight (kg)

250KG

280kg

380KG

Lighting

LED surface light and straight axis contour light

Source

220V ± 10% (AC) The 50 HZ current is greater than 10A
