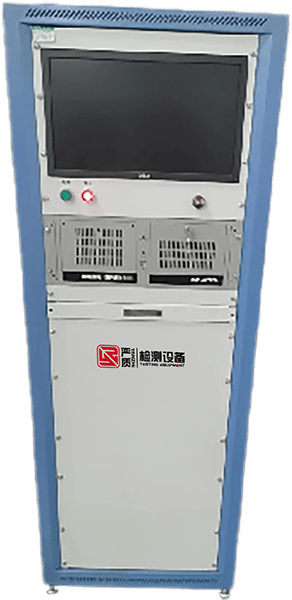

Yanzhi Pulse voltage test system Model: CHT-14D

Apply

Meet met: IEC61730-MST 14

The product shall meet the impulse voltage impact test requirements specified in MST 14 in IEC61730-2:2016,2021 standard, and meet the full coverage of copper foil assembly.

Online Contact
  • Product Features
  • Technical Parameters

1) Output polarity: positive and negative alternating;

2) Internal circuits can be adjusted to accommodate different components;

3) High voltage real-time monitoring shows that the high voltage runaway automatically enters the protection program and the equipment stops running;

4) High-voltage abnormality automatically enters the protection program, and the equipment stops running;

5) By changing the circuit load, the load capacitance can change, suitable for different area components;

6) Front panel LED indication, 7-inch touch screen display;

7) Industrial control machine display, communication with the oscilloscope, convenient for data recording and storage;

8) This equipment is high voltage equipment, need to be equipped with security fence.

Model numberCHT-14D
Impact voltage generator

Voltage range

4KV to 30KV +/-3%
Up edge time1.2 us +/-30 %
Down half-life50 us +/-20 %
Attenuation test line

Attenuation ratio

10:1
Input impedance10MQ
Input capacitor12Pf
Input voltage300V
Bandwidth100MHZ
Compensation capacitor8Pf〜25Pf
Oscilloscope

Display screen

9 inches
Real-time sampling frequency1.0GSa/S
Bandwidth70MHZ
Peak detection3.5ns
Highest resolutionN5us/div@GSa/s
Storage depth20M
Input sensitivity2mV/div~5V/div
Time-base gearT5div~5000ns
Base accuracyW±25ppm
Pulse range20ns-8S
Video polarityPositive polarity, negative polarity
Vertical range±5div
Interchannel isolationN100:1
