Location：Home > Photovoltaic Test Products > Subassemblies > Optical senescence test box / photovoltaic module test LID: CHT-18D

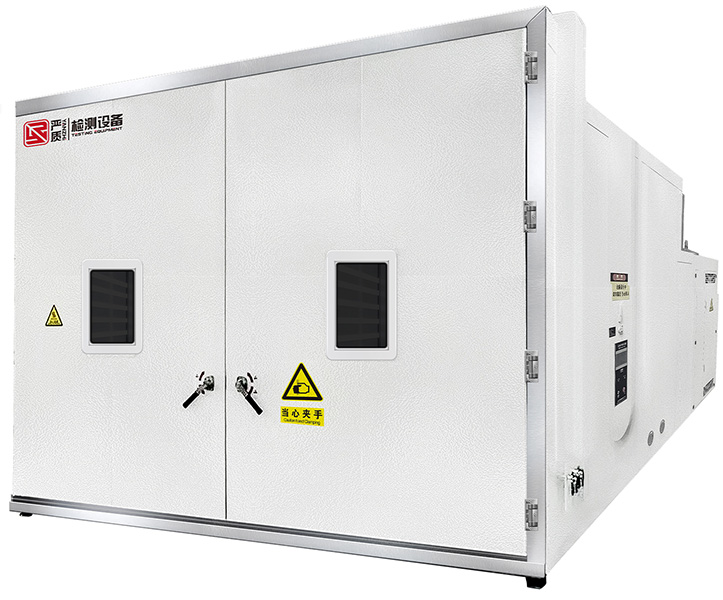

Yanzhi Optical senescence test box / photovoltaic module test LID: CHT-18D

Apply

IEC61215-MQT09,MQT19

Meet the stability test specified in MQT 09 and MQT 19 of the IEC61215 standard, the spot area reaches 500 * 500mm, and the spectrum meets the BBA standard.

Online Contact
  • Product Features
  • Technical Parameters

1) Aluminum profile + color steel plate structure;

2) Spectral mismatch, irradiation inhomogeneity and irradiation instability are at least CCA standard (refer to GB _ T 6495[1]. 9 Standard);

3) Irradiation area reaches 500 * 500mm; (optional in a wider range);

4) Gold halogen lamp can adjust the irradiation intensity or the overall irradiation intensity of each light source;

5) Irradiance control mode, manually set the lamp power or automatically adjust according to the set irradiation intensity;

6) Touch screen control;

7) The temperature, operation duration and accumulated radiation intensity parameters can be set; when arriving at the operation duration / accumulated radiation amount, the equipment will automatically stop.

Model numberCHT-18D
Gold halogen lamp

Power

2,000 W
Operating voltageAC200V
Rated current10A
Spectral matching degreeClass B
Warranty2000H
Power parameters
Power supply typeelectronic power supply (EPS control)
Power supply characteristicselectronic square wave current power supply, no strobe
Software controlindependent industrial control touch screen control power cabinet and microcomputer touch screen interface control
Modulation functionradiation intensity adjustment, parameter display, lamp status, and temperature overtemperature display
Modulation range60-100% of the lamp group and single lamp can be automatically adjusted by software
Input voltage380V (AC) ± 10%
Output voltage350V
Input current14A
Output frequency255 HZ
Tines affecting noise (output current)1%
Protection functionovercurrent, short-circuit
Operating temperature-5~45℃
Irradiation meter
Spectral range285~2800nm
Irradiance range0 ~ 2000 W/m2
Response time<6s
Annual stability1%
Horizontal bubble accuracy＜0.2°
Temperature response5%
Temperature

Sensor type

T-type thermocouple
Test range0~200℃
Test accuracy± 1℃
Resolution0.1℃
Component temperature test accuracy± 0.5℃
Box body parameters

Internal dimensions

700mm * 700mm * 1500mm
Materialaluminum profile + color steel plate structure + reflector plate
Component temperature50 ± 10℃
Structural reference
