Location：Home > Photovoltaic Test Products > Batteries > Differential Scanning Calorimeter (DSC) Model: CHT-CS300

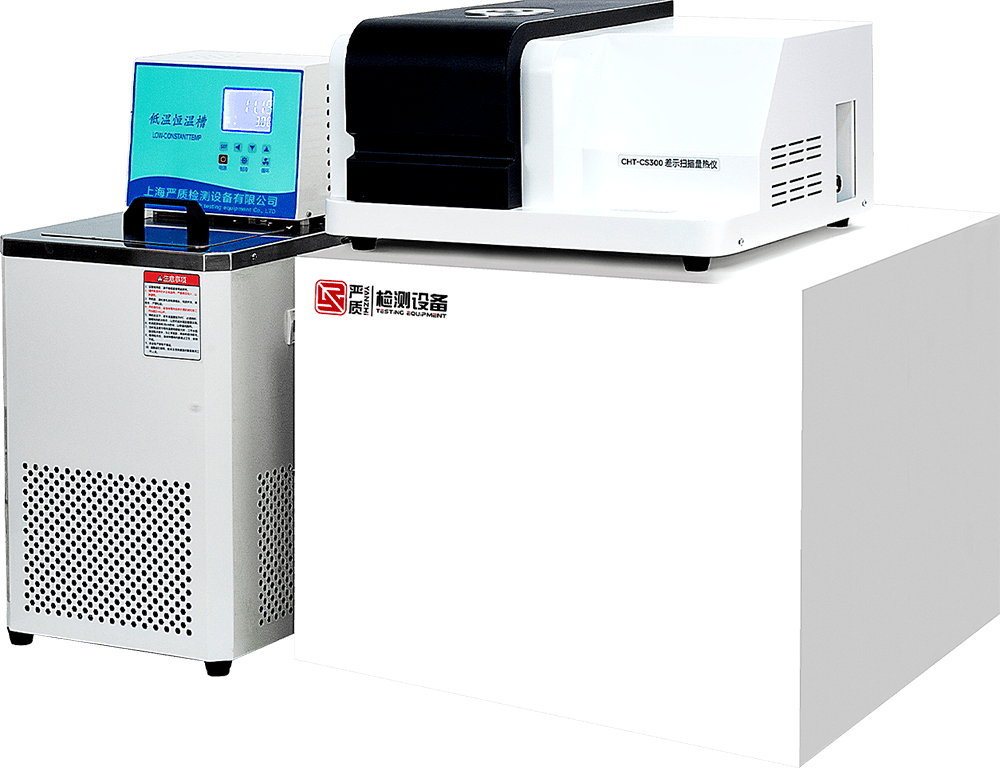

Yanzhi Differential Scanning Calorimeter (DSC) Model: CHT-CS300

Apply

CHT-CS300 is the highest accuracy of the company, the sensor using imported material E even, high sensitivity. The signal acquisition circuit has strong shielding protection, strong anti-interference, and high baseline stability. The difference scanning calorimeter is touch screen type, which can conduct glass transition temperature test, phase transition test, melting and heat enthalpy value test, product stability, curing, specific heat, oxidation induction period test, etc. Wide scope of application.

Differential scanning calorimeter (DSC) is a thermal analysis method. Measure the power difference between the input to the sample and the reference (e. g., in the form of heat) at the program-controlled temperature. The curve recorded by the differential scanning calorimeter DSC curve, it with the sample heat absorption or heat release rate, namely heat flow rate dH / dt (unit millifocus / second) as the ordinate, with temperature T or time t as the abscissa, can determine a variety of thermodynamic and kinetic parameters, such as specific heat capacity, reaction heat, transition heat, phase diagram, reaction rate, crystallization rate, high polymer crystallinity, sample purity, etc. This method uses a wide temperature range (-175~725℃), high resolution, and less sample consumption. Suitable for inorganic substances, organic compounds and drug analysis. The application of thermal analysis method to determine drug purity has been reported abroad, which indicates the good prospect of this method.

Online Contact
  • Product Features
  • Technical Parameters

1) Industrial-level 7-inch touch screen, with rich display information;

2) New metal furnace body structure, better baseline and higher accuracy. Heating adopts indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode;

3) USB communication interface, strong versatility, reliable communication without interruption, support self-recovery connection function;

4) Automatic switch of two atmosphere flow, fast switching speed, short stability time. At the same time, increase the protective gas input;

5) Software is simple and easy to operate.


操作简单

Test map of some samples

1）Test comparison of different heating rates of samples


样品不同升温速率的测试比对


2）Oxidation period test of PE, PPR and other pipes

The oxidation induction time (OIT) is detected by a CS300 (differential scanning calorimeter). Samimens are usually heated to a specified temperature and constant temperature under a nitrogen atmosphere, then switched to an oxygen atmosphere, and after a period of time the material begins to oxidize and heat is released. This release heat is detected by the sensor, and the software analysis obtains the induced oxidation time (OIT). The length of the oxidation induction time is a parameter of the oxidation decomposition resistance ability of the reaction material, and it is still very meaningful, usually the buried plastic pipes must detect this.


PE、PPR 等管材的氧化期测试



3）Vitrification testing of resin and other materials

For amorphous polymers, when the polymer changes from high elastic state to glass state through cooling, or the process from glass state to high elastic state is called the glass transition, the temperature of the glass transition is called the glass transition temperature. For crystalline polymers, the glass transition refers to the transition from high elastic state to glass state (or glass state to high elastic state) in the amorphous part. Thus, the glass transition is a ubiquitous phenomenon in macromers. However, the glass transition phenomenon is not limited to high molecules, and some small molecule compounds also have glass transition.


树脂等材料的玻璃化测试



4）Test of the melting point and thermal enthalpy of the material (thermal stability test)

The melting point is the temperature of solid transition from solid or melting into liquid of the mixture; the test of thermal enthalpy is also applicable to the test analysis of crystallinity:


材料熔点、热焓测试 (热稳定性测试）



5）Curing test of glue and other materials

Refers to the process of material from low molecule to polymer, the solidified sample strength will be higher.


胶水等材料的固化测试



6）Lift-up temperature scanning test


升降温扫描测试



7）Specific heat capacity test application, the software supports the specific heat capacity at different temperatures


比热容测试应用


8）Specific heat capacity test application, the software supports the specific heat capacity at different temperatures





Temperature range

-40℃~ 600℃ (extended liquid nitrogen refrigeration-150~600℃)
Temperature resolution0.001℃
Temperature fluctuation±0.01℃
Temperature repeatability±0.1℃
Heating rate0.1～100℃/min
Cooling rate0.1~40℃/min
Constant temperature timethe program is set for 24h
Curve scanningheating up scanning and cooling scanning
CS300 range0 ~ ±800mW
CS300 resolution0.01uW
CS300 accuracy0.001mW
Temperature control methodtemperature up, constant temperature, cooling
Working power supplyAC220V/50Hz or customized
Atmosphere control gasnitrogen, oxygen (instrument switch)
Gas flow rate0-300mL/min
Gas pressure≤5MPa

Display mode

24bit color，7-inch LCD touch screen display
Data interfacestandard USB interface
Parameter standardequipped with standard material (indium, tin, lead), the user can correct the temperature
The instrument has multiple sets of thermocouplesone set of test sample temperature, and one set of test instrument internal ambient temperature

Software with automatic analysis function

Can lift and lower temperature multiple test, five section program setting
