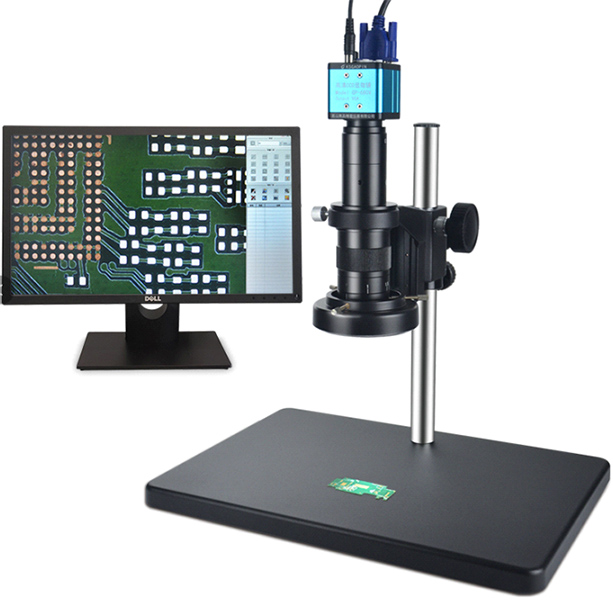

Yanzhi HD Microscope model CHT-6880

Online Contact
  • Technical Parameters
Lens multiplier0.7-4.5X continuously adjustable
Electronic magnification21-135 times adjustable (can be expanded to 270 times)
Eyepiece0.5X (standard)
Frame rate30 frames per second
Pixels2 million
Resolution1920 * 1080 1024 * 768 and other 7 resolutions
Lighting modeLED adjustable ring lamp
Display modeVGA computer display screen (can be equipped or purchased separately)
Materialpure optical glass lens, all-metal body, durable
Packaging methodshockproof foam, carton
High quality image outputhigh contrast and brightness of the image enhance the visual viewing effect
Excellent image resolutionin the detection of small samples requires the instrument can be high resolution to subtle local
2 million pixel high resolution CCDelectronic industry, individual enthusiasts can use, versatile
VGA image outputno need to pass through the computer host, the general computer display screen connection can be used
