Location：Home > Photovoltaic Test Products > Subassemblies > Appearance table Model: CHT-W26

Yanzhi Appearance table Model: CHT-W26

Apply

The visual inspection table is used to check any visual defects visually visible in the PV module. Meet the appearance inspection condition in IEC61215-2:2016 standard MQT 01.

Online Contact
  • Technical Parameters
System composition
The appearance inspection table is composed of 1 inspection table, 1 ceiling plane light, 1 illumination meter, a magnifying glass with light source (1) and a ruler.

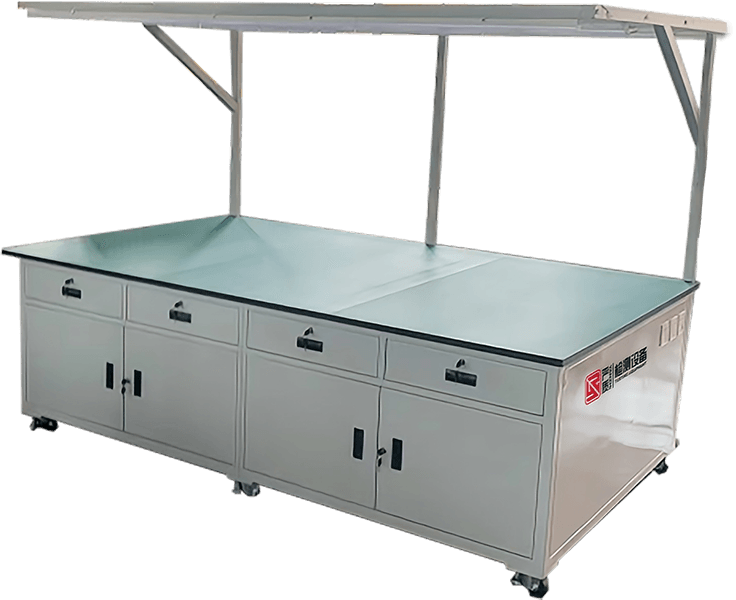

The inspection table is shown in Figure 1, greater than 2600mm long, 1500mm wide, 700mm high, with 4 drawers on the front and back sides, the table adopts green anti-slip pad, and the frame adopts European standard 4040 thickened aluminum alloy profile.
Technical parameter
Lightingfluorescent lamp; color rendering index:> 90%
Color temperature5000K; illuminance:> 1000 Lux; table size:> 2600mm 1500mm
Countertop materialgreen anti-slip mat; frame material: aluminum alloy profile
DrawerFour
