Location：Home > Photovoltaic Test Products > Subassemblies > Lead end strength test machine Model: CHT-31

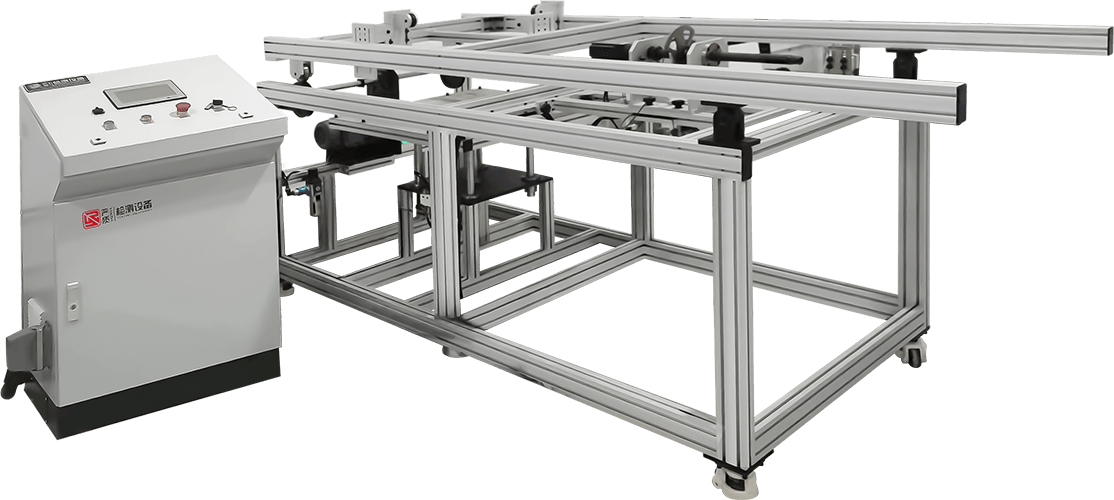

Yanzhi Lead end strength test machine Model: CHT-31

Apply

Satisfied: IEC61215-MQT 14, IEC61730-MST 42, UL1703-22.29

During the transportation and installation of the components, the cable of the junction box may be stressed, so it is necessary to determine whether the attachment of the lead end and the lead end and the attachment of the wire and the component body can withstand the force sustained during the normal installation and operation.

This test machine is a lead end strength test machine developed according to the IEC61215 (2016) standard MQT 14 clause. The test machine includes three functions: tension test, torsion test and bonding force.

Online Contact
  • Technical Parameters
Pull test
Power sourceSupply using a motor to provide a power source
Weight30N，42N，55N，70N，80N，90N，100N，115N，156N
Tension period1s
Number54 （setup）
Displacementmanual quantity
Torsional force test
Force deviceservomotor
Test time1 min (setup)
Automatic display of torsion
