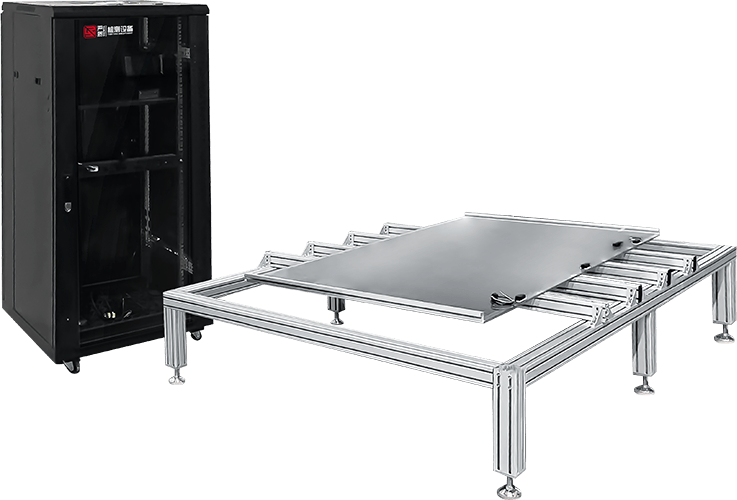

Yanzhi Static load test machine model: CHT-26D

Apply

Meet the execution standards: IEC 61215-2:2021, UL 1703-2015.

Mechanical load test machine instruments refer to IEC 61215-2:2021 and UL 1703-2015. Corresponding standard terms, including design and manufacturing. The mechanical load testing machine is used to verify the ability of the component to withstand static and dynamic load under wind, snow or ice-covered conditions. This machine is used to test the compressive strength of the photovoltaic module, and to simulate the load test, so as to understand the compressive capacity of the product under the load state.

Online Contact
  • Product Features
  • Technical Parameters

1) Static load: stack sandbags to apply pressure on the components;

2) The monitoring software synchronously collects the component current, component voltage, shape variable and other information;

3) Humanized human-machine interface graphics, current arbitrary setting, can meet the diverse needs of customers;

4) Visual icon and EXCEL output form, to meet the diverse needs of customers;

5) Component installation mode: pressure block installation, screw hole installation, double wave, single axis, co-beam installation;

6) Meet the testing requirements of conventional components and double-glass components.

Stent size2500*1400mm *500mm
Compressor methodsandbag
Sandbag materialsandbag (double set, inner PU + outer nylon)
Sandbag specification10kg single sandbag, 200 sandbags
The maximum load of the test equipment meets the pressure of 5400Pa
Form variable sensorshape variable test system: with the shape variable monitoring function, the monitoring points can be adjusted (at least 3 type variable test points), and the shape variable is monitored and recorded throughout the whole process
Form variable sensor accuracy±0.5mm
Circuit continuity monitoring systempower supply monitoring system: DC power supply: DC 100V / 1A, real-time monitoring of the internal continuity of the component
