Location：Home > Photovoltaic Test Products > Subassemblies > Component crushing tester Model: CHT-30D

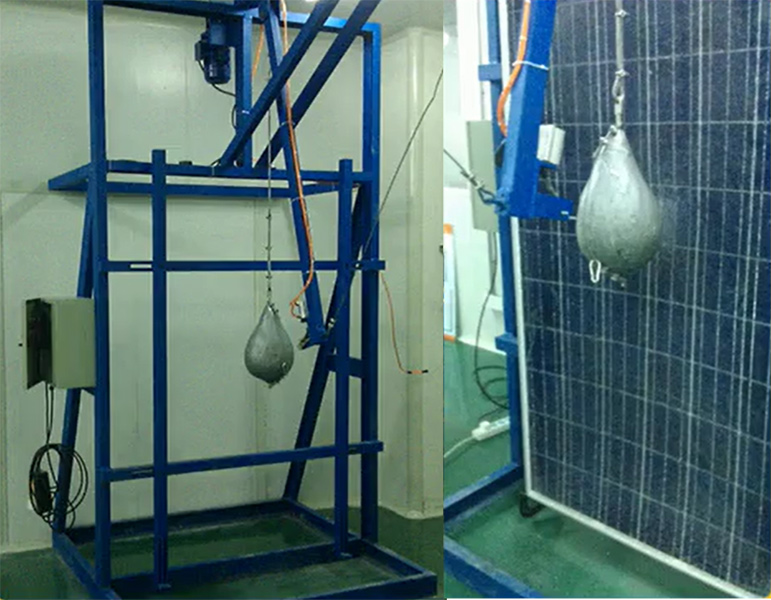

Yanzhi Component crushing tester Model: CHT-30D

Apply

Satisfied: IEC61730-MST 32, UL1703-30

Solar modules may be hit by heavy objects during their production, installation and use. When the component is broken, if the component performance is not good, there may be large granular glass or other substances on the surface, which will affect the safety. By simulating the impact of the component, evaluate the impact resistance of the component or the possibility of surface damage after the component is broken.

Online Contact
  • Technical Parameters
Touch-screen control and recording
Precise control of the impact and stretch height
Different fixtures are suitable for different specifications of components
Main body materialchannel steel
Frame structurecontrol cabinet, base, support arm, sample fixing fixture, traction system, release system
Impact height300mm~1200mm (adjustable)
Device test frameinner size adjustable, channel steel 100mm wide and 3mm thick
Glass collection boxA glass collection box is added to the bottom of the device to collect scattered glass caused by collision
Device protective plateAdd acrylic protective plate around the equipment operating table to prevent glass debris from splashing
Impact bag weight45.5kg±0.5kg
Filler2.5-3mm lead beads
Automatic lifting, and release
