Location：Home > Photovoltaic Test Products > Subassemblies > Hot and heat test box Model: CHT-19-12-2

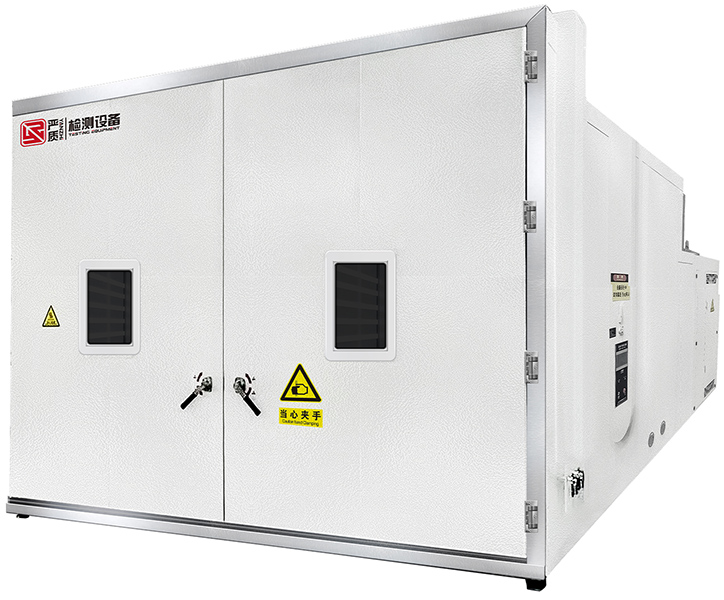

Yanzhi Hot and heat test box Model: CHT-19-12-2

Apply

satisfied:

IEC61215-MQT10、MQT11、MQT12；

IEC61730-MST37、MST51、MST52、MST53、MST55、MST56；

UL1703-34,35,36.

This machine mainly uses the necessary test equipment of the photovoltaic industry and the solar industry, and is used to test the photovoltaic modules, mainly a series of monocrystalline silicon modules, ground crystal silicon photovoltaic modules, high temperature, low temperature, alternating humidity temperature or the constant test; or the parameters and performance after the temperature environment of the constant humidity and heat test. Suitable for schools, factories, military industry, research and development units.

Online Contact
  • Product Features
  • Technical Parameters

1) This product is an extension of our company's CHT series of standard products. Similar products have mature applications in electrical and electronics, automobile, scientific research, military industry, solar energy and other units;

2) The technical scheme shall be prepared according to the technical documents provided by the customer and combined with the installation site conditions and other data;

3) Product design and manufacturing to achieve advanced technology, stable equipment performance, reliable use, simple operation, convenient maintenance, while considering the economy and implementation of the scheme;

4) Ensure the usability, reliability, advancement and safety of the process equipment;

5) Adopt mature and reliable new technologies to reduce energy consumption, save costs and improve quality;

6) The selection of accessories adopts the principle of combining domestic and foreign, domestic equipment selects well-known domestic manufacturers quality famous brand products, key equipment and electrical components choose imported or joint venture products, to ensure the advanced nature, stability and normal service life of the equipment;

7) Electrical control is designed according to the process and equipment requirements, in line with the relevant national electrical standards, reliable operation, and consider the electrical protection and chain function.

Model number

CHT-19-12-2

Size


Nominal content (m³)

19m³ (user by range)

Inner box size (mm)

W2400 D3000 H2800 mm (optional)

Outer box dimension (mm)

W3200 D4500 H3300 mm (optional)

Temperature index

Temperature range

10℃ ~ + 150℃ (selected by user in range)

Temperature fluctuation degree

Under the full load of < ± 1.0℃, the change of the temperature at the center point of the working space over time, half of the difference between the measured highest temperature and the lowest temperature, is expressed as "", that is, the temperature fluctuation ℃

Temperature uniformity

<2.0℃ Full load, the arithmetic average of the difference between the highest temperature and the lowest temperature in each test, namely, the temperature uniformity

Temperature deviation

Temperature difference of ± 2.0℃, i. e. temperature deviation

Temperature control accuracy

±0.1℃

Temperature change rate

10℃ ~ + 150℃ heating time: 1℃ / min (Average throughout).

Cooling time of + 120℃ ~20℃: 1℃ / min (Average throughout).

Humidity index

Humidity range: 10% RH ~ 98% RH

Humidity accuracy: ± 1% RH

Humidity fluctuation: + 2~ -3% (> 95% RH), ± 5% (95% RH)

Humidity deviation: ±3%R.H
